Equipment	Model #
10-foot Galvanized-Steel Instrument Tripod	CM10
20-Watt Solar Panels	SP20
12 Vdc Power Supply with Rechargeable Battery	PS100
Enclosure Series	ENC12/14
4-foot Crossarm with Bracket	CM204
Right Angle Mounting Bracket	CM220
R. M. Young Wind Monitor	05106-L
Temperature and RH Probe (x2)	HMP45C-L
10-Plate Gill Radiation Shield (x2)	41003-5
Leaf Wetness Sensor	LWS-L
Kipp and Zonen Net Radiometer	NR-LITE
LI-COR Silicon Pyranometer	LI200X-L
Pyranometer Base/Leveling Fixture	LI2003S
Solar Sensor Mounting Stand	CM225
Texas Electronics 8" Rain Gage	TE525WS-L
Texas Electronics 6" Rain Gage	TE525-L
Datalogger for Measurement and Control	CR1000
Ethernet Interface and CompactFlash Module	NL115

CR1000 Datalogger for Measurement and Control
The CR1000 Datalogger provides the measurement and control functions of a data acquisition system.

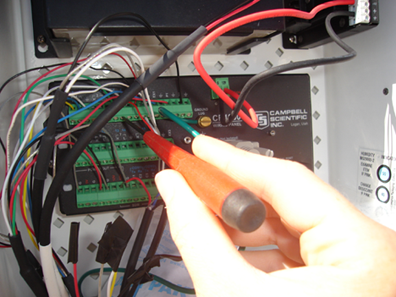

Wiring the sensors into the data logger.
Photo by Eliza Bradley; June 7, 2007.

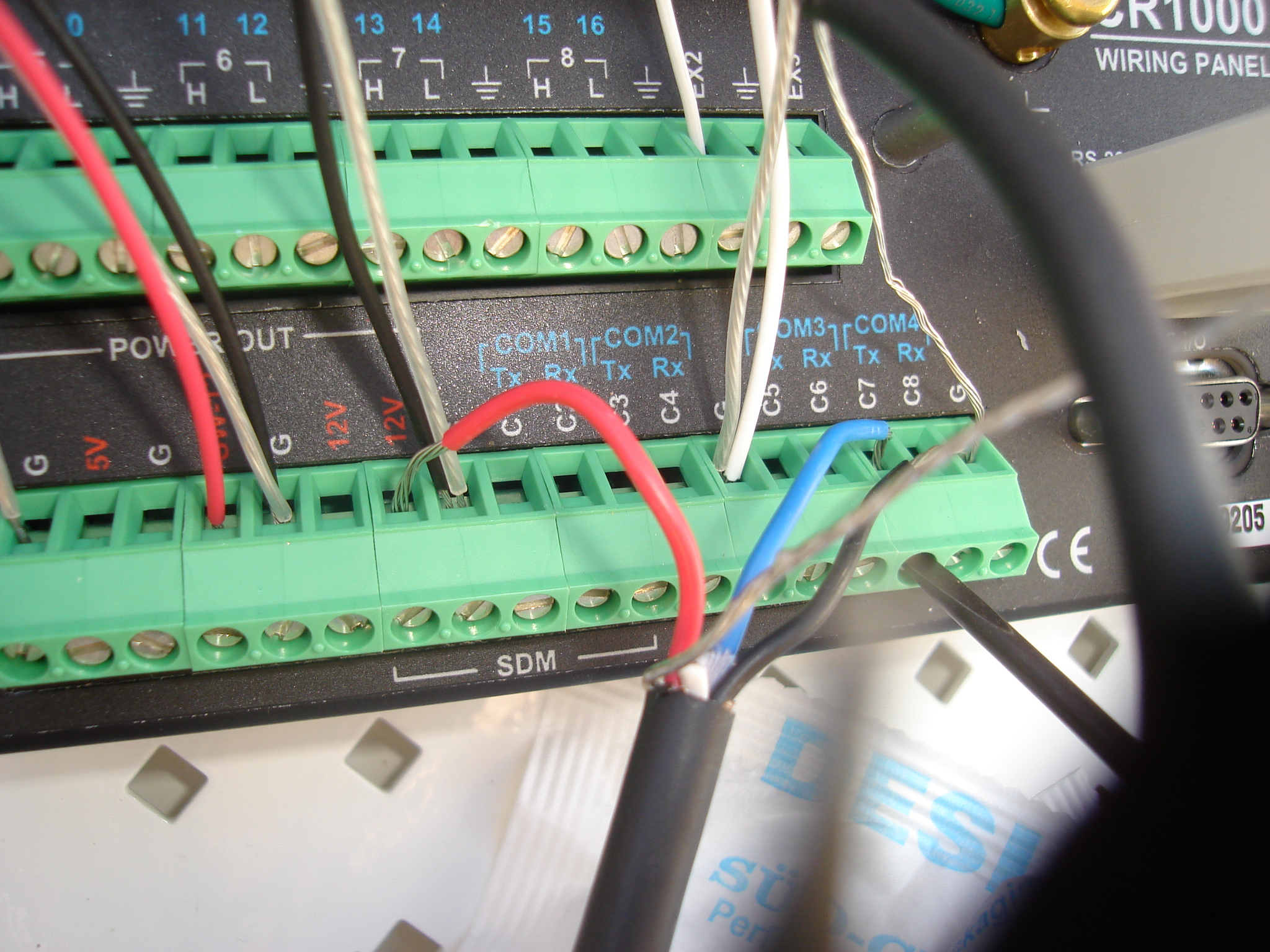

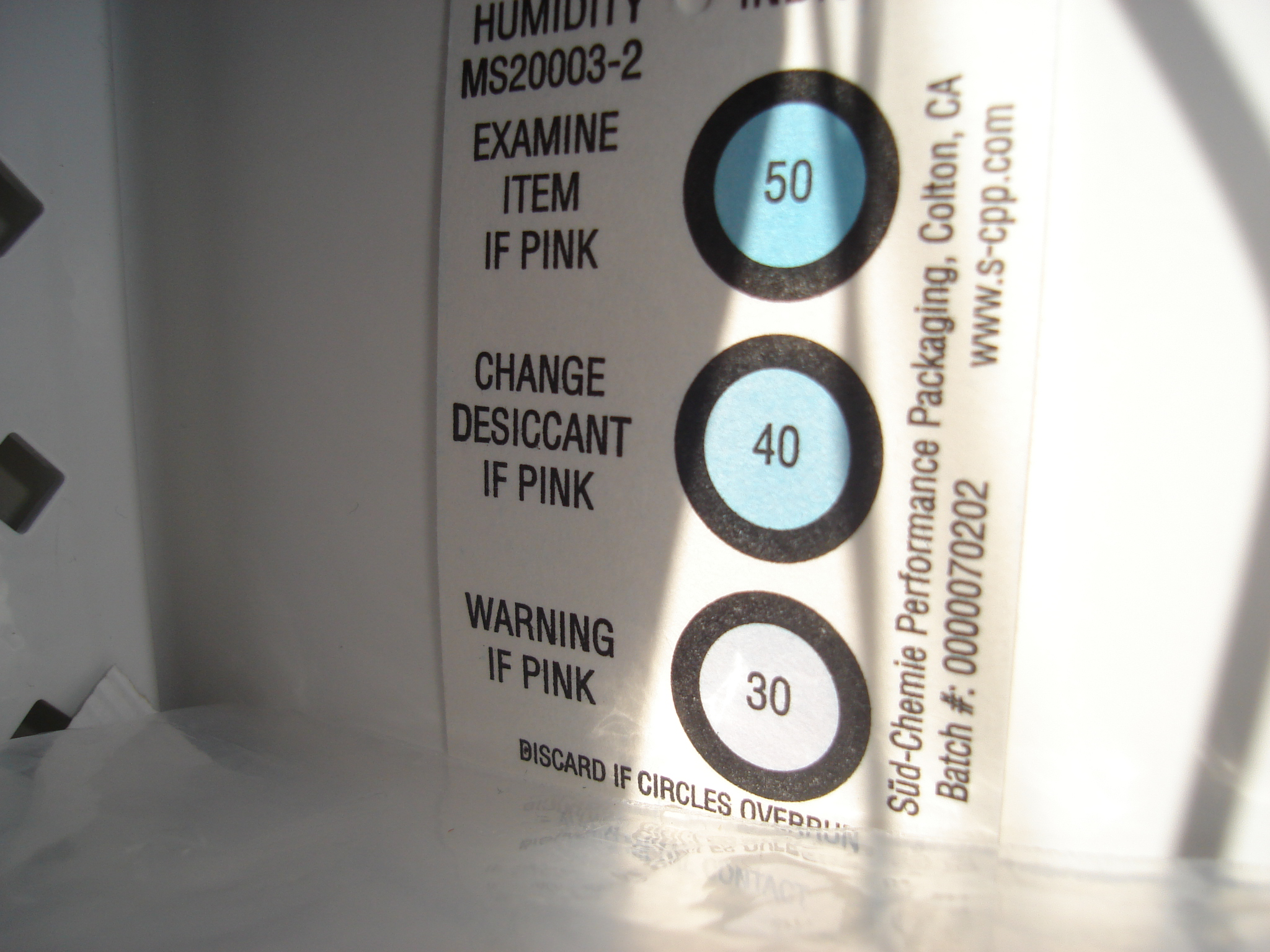

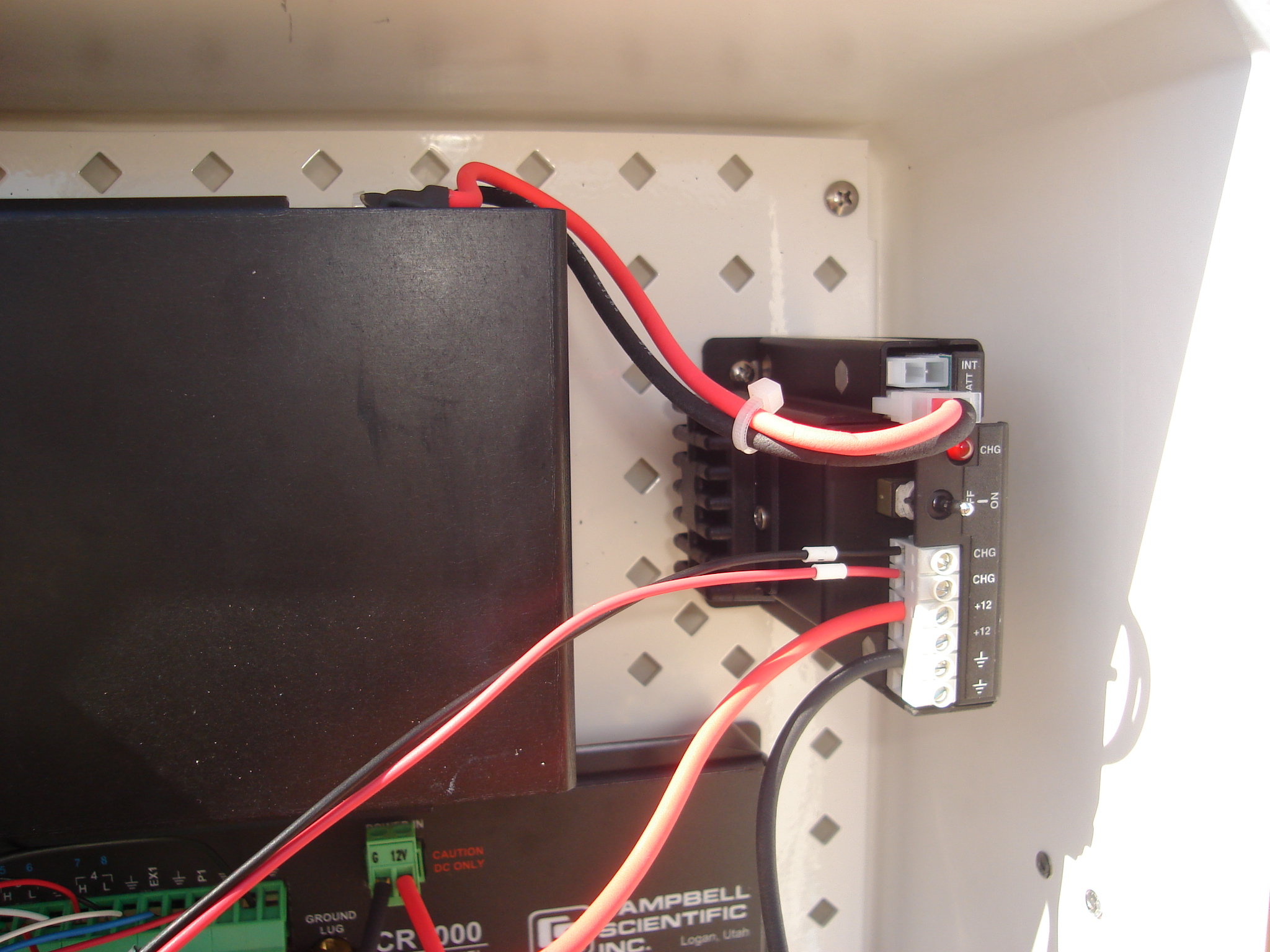

Humidity sensor inside the enclosure. See larger image in a new window.	Power connections. See larger image in a new window.	Data logger with sensor wiring. See larger image in a new window.

Photos by Eliza Bradley; June 7, 2007.

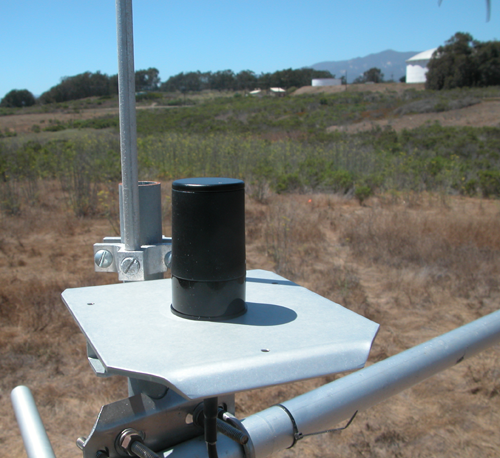

Omnidirectional antenna for the modem at Coal Oil Point Reserve.
Photo by Dar Roberts; July 18, 2007

SP20 Solar Panels
The SP20 Solar Panel is a 20 watt unregulated solar panel often used for system configurations in higher elevation and latitude locations, or those that have higher than average power requirements.

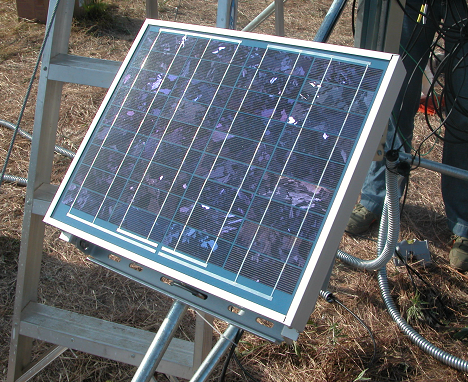

Solar panel at Coal Oil Point Reserve.
Photo by Dar Roberts; May 25, 2007.
